- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Line
- SuperServer
- Product Type
- Server Barebone System

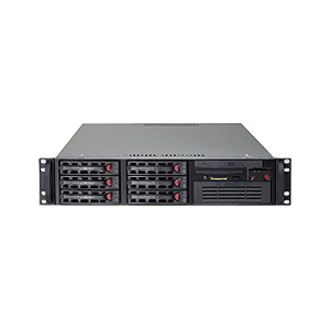

Designed for optimal performance, the dual-processor SuperServer 6026T-TF Barebone System supports the QPI format quad-core/dual-core Xeon processors in a high-density 2U form-factor. This 6026 SuperServer is ideal for network infrastructure, front-end enterprise and minimal-downtime cluster server systems.
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 2
- Processor Socket
- Socket B LGA-1366
- Processor Supported
- Xeon
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- 5520
- Memory
- Maximum Memory Supported
- 192 GB
- Memory Technology
- DDR3 SDRAM
- Memory Standard
- DDR3-1066/PC3-8500
- Total Number of Memory Slots
- 12
- Controllers
- Controller Type
- Serial ATA/300
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 1+0, 5
- Display & Graphics
- Graphics Controller Model
- G200eW
- Graphics Memory Capacity
- 8 MB
- Graphics Memory Technology
- DDR2 SDRAM
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 7
- Number of External 5.25" Bays
- 1
- Number of 3.5" Bays
- 6
- Total Number of Expansion Slots
- 5
- Number of PCI Express x4 Slots
- 1
- Number of PCI Express x8 Slots
- 2
- Number of PCI Express x16 Slots
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Number of USB 2.0 Ports
- 4
- Network (RJ-45)
- Yes
- VGA
- Yes
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Number of Power Supplies Installed
- 1
- Maximum Power Supply Wattage
- 650 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Rack Height
- 2U
- Height
- 3.5"
- Width
- 16.8"
- Depth
- 25.6"
- Miscellaneous
- Package Contents
- SuperServer 6026T-TF Barebone System
- 1 x Super X8DTE-F Motherboard
- 1 x 2U Black Chassis
- 1 x 823 SAS TQ BACKPLANE W/AMI 9072
- 3 x 35CM, SATA CABLE, PB FREE
- 2 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF
- 3 x SATA CABLE 48CM FLAT S-S PBF
- 1 x CD For X8 series
- 2 x 2U+ PASSIVE CPU HS FOR INTEL LGA1366 X8 MB
- 1 x 2U 650W REDUNDANT FAN POWER SUPPLY
- 1 x Front ctrl cable 16 PIN TO 16 PIN, LF, Flat (L=54cm)
- 1 x US power cord 16AWG 6ft, PBF (default for high watt)
- 4 x 80X38MM 4-PIN PWM FAN W/ HUS FOR SC825
- 1 x 2U Chassis Rails. Outer slides extendable length: 28.25" to 33"
- 6 x 3.5" Hard Drive Trays
- Additional Information
QuickPath Technology:
- QuickPath Interconnect supports up to 6.4 GT/s
Expansion Slot Detail:
- PCI Express x16 slots have the bus speed of PCI Express x8
- Environmentally Friendly
- Yes
