Single Processor
The industry's broadest portfolio of single processor servers providing optimal choice for small to midsize workloads
- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Line
- SuperServer
- Packaged Quantity
- 1
- Product Type
- Server Barebone System
- Warranty
- Limited Warranty
- 1 Year
- Processor
- Number of Processors Supported
- 1
- Processor Socket
- Socket LGA-4189
- Processor Supported
- Xeon Bronze
- Xeon Silver
- Xeon Gold
- Xeon Platinum
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C621A
- Memory
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-3200/PC4-25600
- Total Number of Memory Slots
- 8
- Intel Optane Memory Ready
- Yes
- Storage
- Supported Storage Drive Interfaces
- Serial ATA III
- SAS-3
- Controllers
- Controller Type
- Serial ATA/600
- 12Gb/s SAS
- RAID Supported
- Yes
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 6
- Number of 3.5" Bays
- 4
- Number of PCI Slots
- 1
- Number of PCI Express x16 Slots
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 11
- Number of USB 3.2 Gen 1 Ports
- 5
- Number of SATA Interfaces
- 10
- Number of VGA Ports
- 1
- Power Description
- Plug/Connector Type
- C13
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 400 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Rack Height
- 1U
- Height
- 1.7"
- Width
- 17.2"
- Depth
- 20"
- Weight (Approximate)
- 17.60 lb
- Miscellaneous
- Package Contents

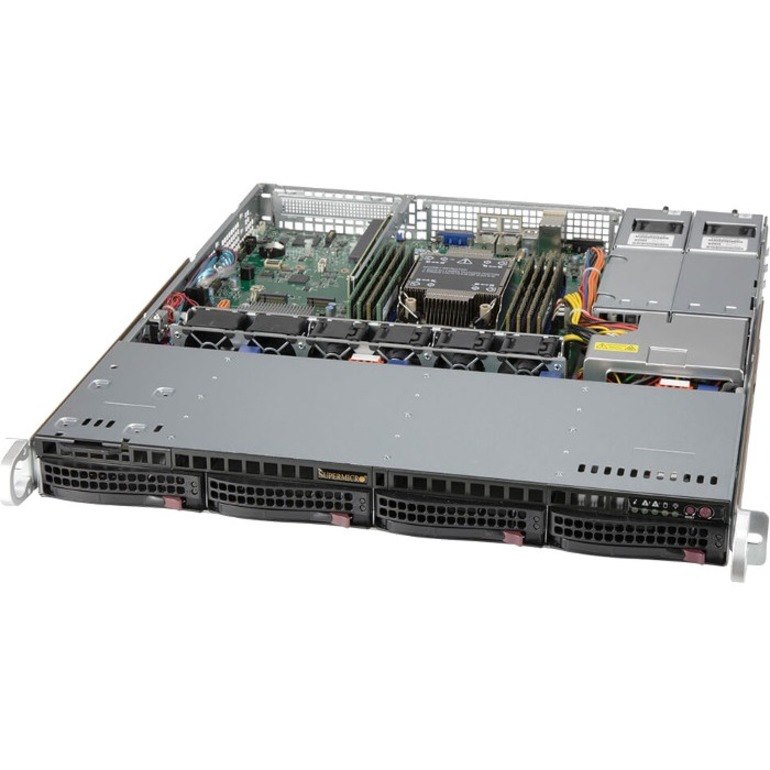

- UP SuperServer SYS-510P-MR
- 1 x Super X12SPO-F Motherboard
- 1 x 1U Chassis
- 1 x 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
- 1 x MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG
- 1 x 510P-M/MR Quick Reference Guide
- 1 x 1U LHS Standard riser card with one PCI-E 4.0 x16 slot,HF,Ro
- 1 x License key for enabling OOB BIOS management
- 1 x 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
- 2 x AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
- 1 x Power Distributor With 24pin for SC813M
- 1 x ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
- 2 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
- 1 x Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
- 4 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
- 1 x Front control board dual color for SC815,SC813M (C)
- 4 x Black gen 5.5 hot-swap 3.5" HDD tray
- 1 x STD rear window for SC113 redundant PWS
- 1 x Redundant Silver plastic PDB cover for SC813M,113M
- 1 x 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
- 1 x Outer rail, quick-release type, 25.6\" to 33.05\"
- 1 x Inner rail, front, short, quick-release type
- 1 x Inner rail, extension (quick) for 1U 17.2
- 1 x Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15")
- 2 x Dummy fan 40x28mm
