- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Type
- Server Barebone System
- Warranty
- Limited Warranty
- 1 Year
- Additional Warranty Information
- Supermicro provides a three-year warranty for labor and one-year warranty for parts.
- Processor
- Number of Processors Supported
- 1
- Processor Socket
- Socket LGA-4189
- Processor Supported
- Xeon Gold
- Xeon Silver
- Xeon Bronze
- Xeon Platinum
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C621A
- Memory
- Maximum Memory Supported
- 2 TB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-3200/PC4-25600
- Total Number of Memory Slots
- 8
- Intel Optane Memory Ready
- Yes
- Storage
- Supported Storage Drive Interfaces
- Serial ATA III
- SAS-3
- PCI Express 3.0 x4
- Supported Storage Drive Types
- SSD
- HDD
- Controllers
- Controller Type
- NVMe
- Serial ATA/600
- 12Gb/s SAS
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 5, 10
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 36
- Number of 3.5" Bays
- 36
- Total Number of Expansion Slots
- 4
- Number of PCI Express x8 Slots
- 2
- Number of PCI Express x16 Slots
- 2
- Number of M.2 Interfaces
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 9
- Number of USB 3.2 Gen 1 Ports
- 3
- Number of Onboard USB 2.0 Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 3
- Number of VGA Ports
- 1
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 1200 W
- Thermal Design Power
- 270 W
- Frequency
- 60 Hz
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Rack Height
- 4U
- Height
- 7"
- Width
- 17.2"
- Depth
- 27.5"
- Weight (Approximate)
- 66.50 lb
- Miscellaneous
- Package Contents

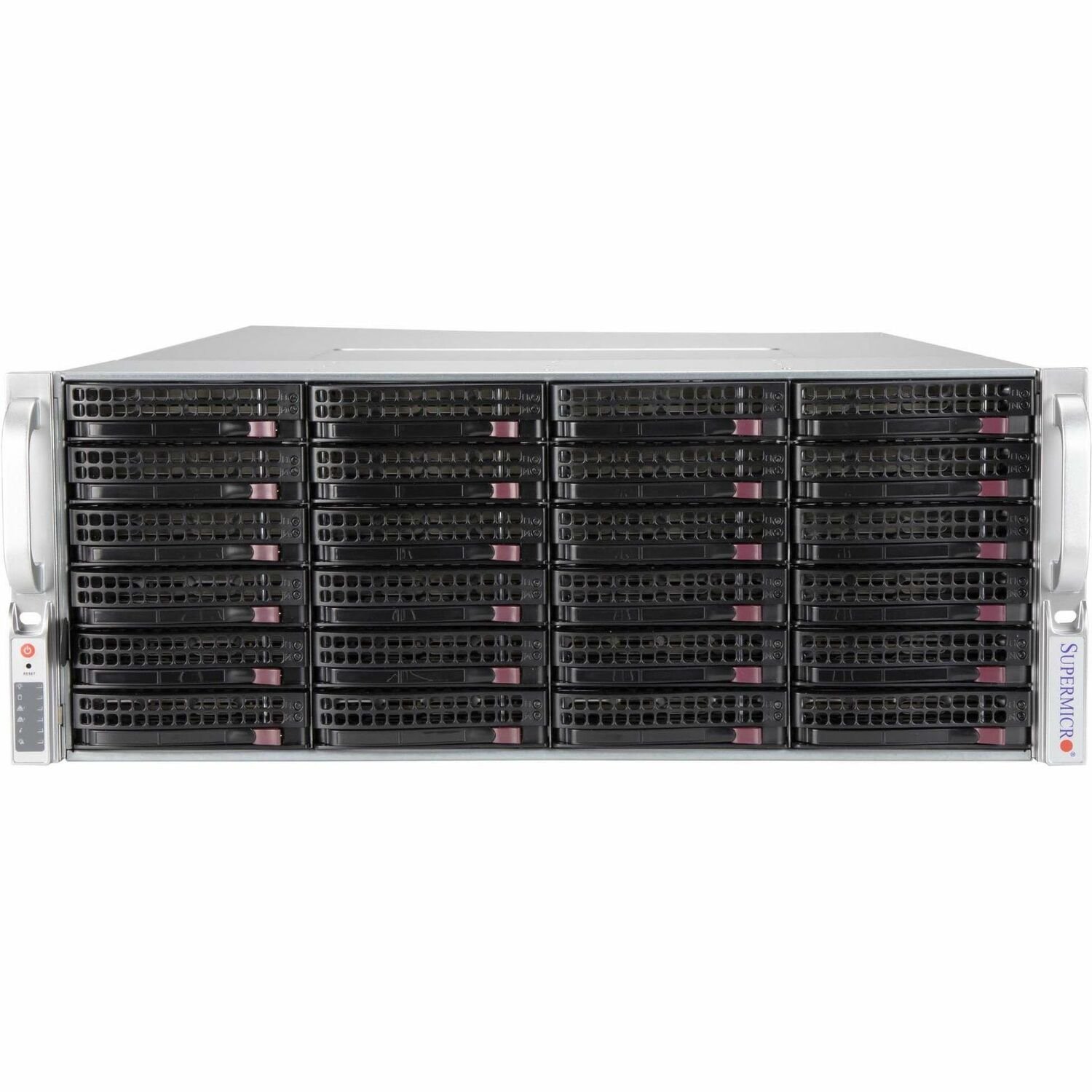

- UP Storage SuperServer SSG-540P-E1CTR36L
- 1 x Super X12SPI-TF Motherboard
- 1 x 4U Chassis
- 1 x 8C5:C29 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP,122HDDw/exp,R
- 1 x 8-port Mini SAS HD Int-to-Ext Cable Adapter W/LP Bracket
- 1 x12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
- 1 x 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
- 4 x 9" 4 PIN FAN PWS EXTENSION CORD, PBF
- 1 x 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
- 1 x Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS
- 4 x Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s
- Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s [FCI]
- 1 x ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
- 2 x US POWER CORD 16AWG, PB FREE
- 7 x PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,37CM,22AWG,5A/pin,RoHS
- 1 x Standard I/O Shield for X12SPi with EMI Gasket
- 1 x 540P-E1CTR36L/H Quick Reference Guide
- 1 x License key for enabling OOB BIOS management
- 1 x 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
- 2 x AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
- 1 x 24pin standard output with 5V high current 100Amp power distributor board for SC847
- 7 x 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
- 1 x Chassis transfer board for SC826
- 36 x Black gen 5.5 hot-swap 3.5" HDD tray
- 1 x SC847B LP MB Tray assembly,HF,RoHS/REACH
- 1 x Rail set, quick/quick, default for 4U 17.2" W
- 1 x set Rail screw bag
- 1 x SC84
