- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- JBL Professional
- Product Series
- AE
- Product Type
- Speaker

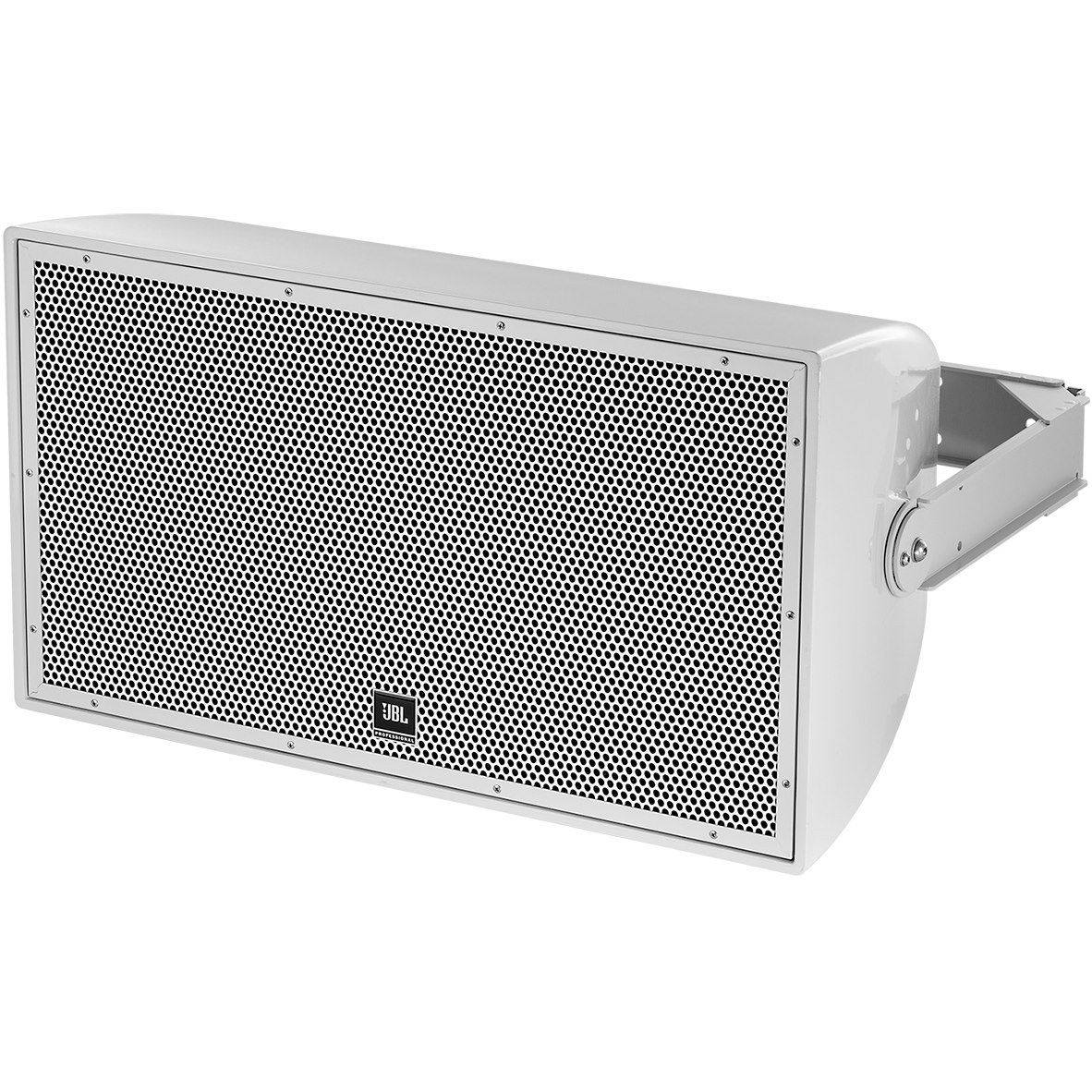

The AW266 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW266 is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Crossover Type
- 2-way
- RMS Output Power
- 500 W
- PMPO Output Power
- 2000 W
- Woofer Driver Size
- 11.81"
- Tweeter Driver Size
- 1.50"
- Minimum Frequency Response
- 51 Hz
- Maximum Frequency Response
- 18 kHz
- Impedance
- 8 Ohm
- Maximum Crossover Frequency
- 1.10 kHz
- Sound Pressure Level
- 126 dB
- Sensitivity
- 98 dB
- Physical Characteristics
- Product Color
- Black
- Product Material
- Fiberglass
- Stainless Steel
- Height
- 16.1"
- Width
- 28.8"
- Depth
- 17.80"
- Weight (Approximate)
- 55.56 lb
- Miscellaneous
- Package Contents
- AW266 High Power 2-Way All Weather Loudspeaker with 1 x 12" LF
- Transformer
- U-Bracket
- Certifications & Standards
IP56 per IEC 529
